Swivel Coupler

PRODUCT PARAMETERS

Product Name: Swivel Coupler / Rotating Coupler
Type: Scaffolding Coupler
Material: Q235 Carbon Steel
Standard: EN74 / BS1139 / JGJ130
Surface Treatment: Electro Galvanized
Hot-Dip Galvanized
Weight: 1.0 – 1.3 kg / pcs (depending on type)
Tube Size: 48.3 mm × 48.3 mm
Slip Resistance: ≥ 7.0 kN
Breaking Load: ≥ 10.0 kN
Bolt Size: M12 / M14
Nut Type: Flange Nut / Hex Nut
Color: Silver / Yellow / Customized
Process: Forged / Pressed
Application: Used for connecting two steel tubes at any angle in scaffolding systems

Description
FAQs
Request A Quote

Description

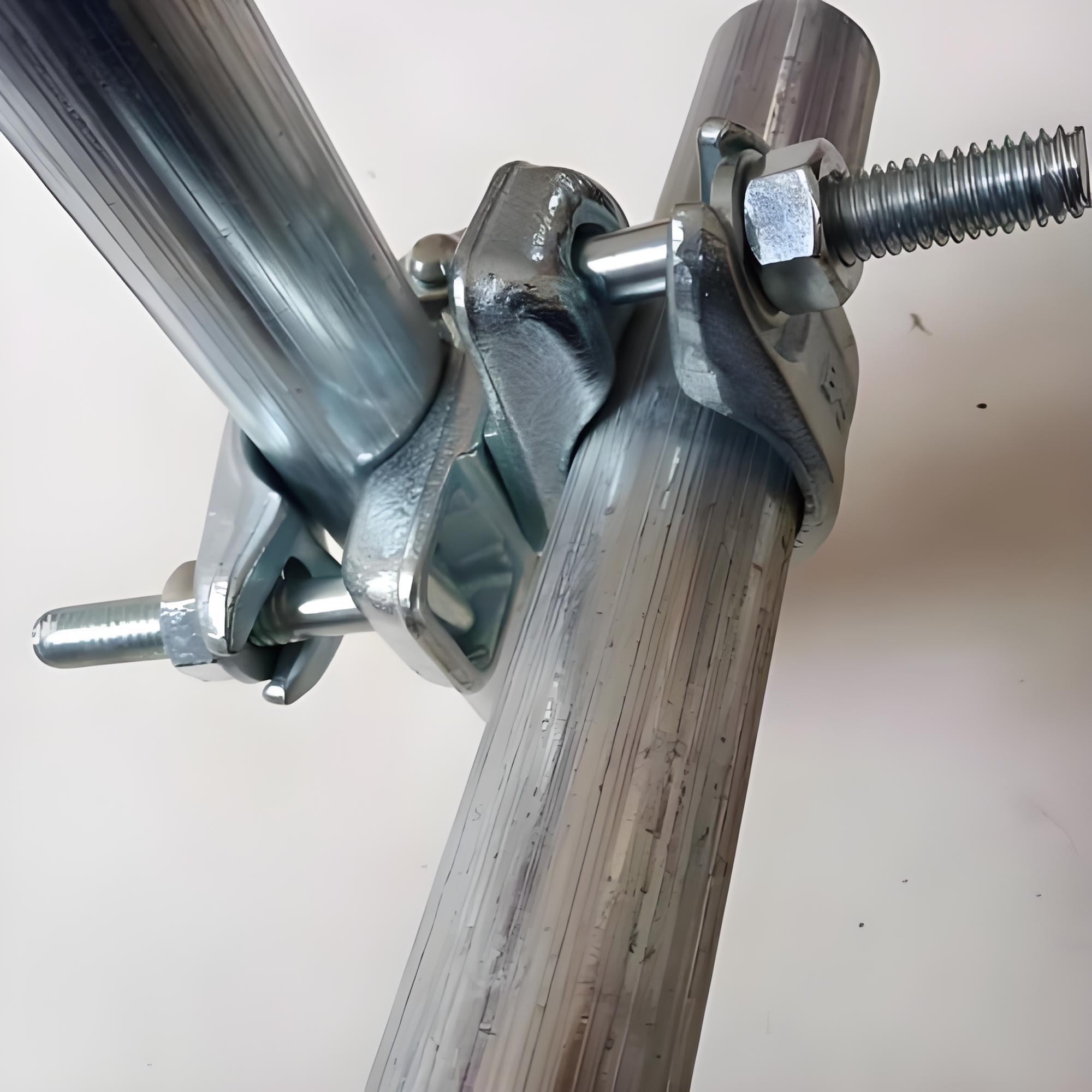

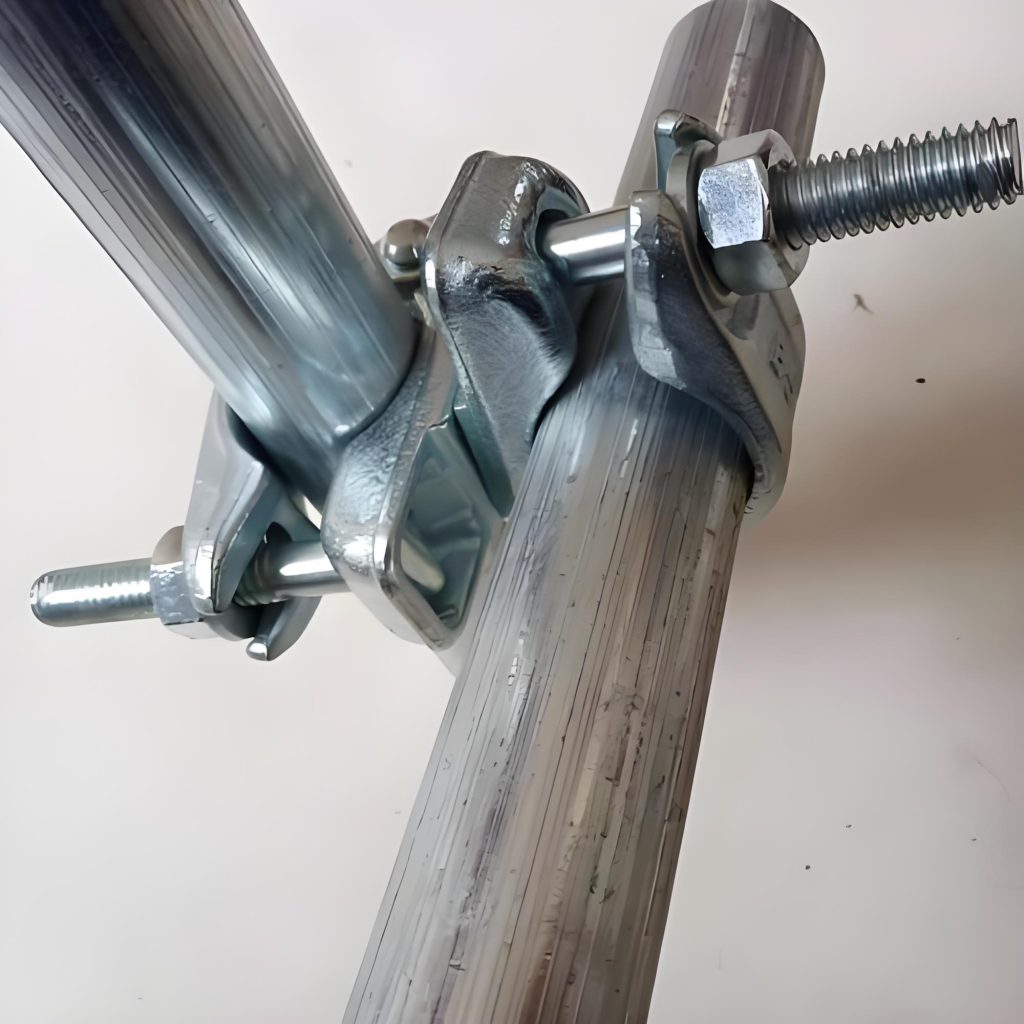

The swivel coupler is a key component in scaffolding systems, designed to connect two steel tubes at any angle. It provides flexible connections and is widely used in complex scaffolding structures such as bridges, tunnels, and construction projects. With high strength and strong anti-slip performance, it ensures safety and stability during use.
